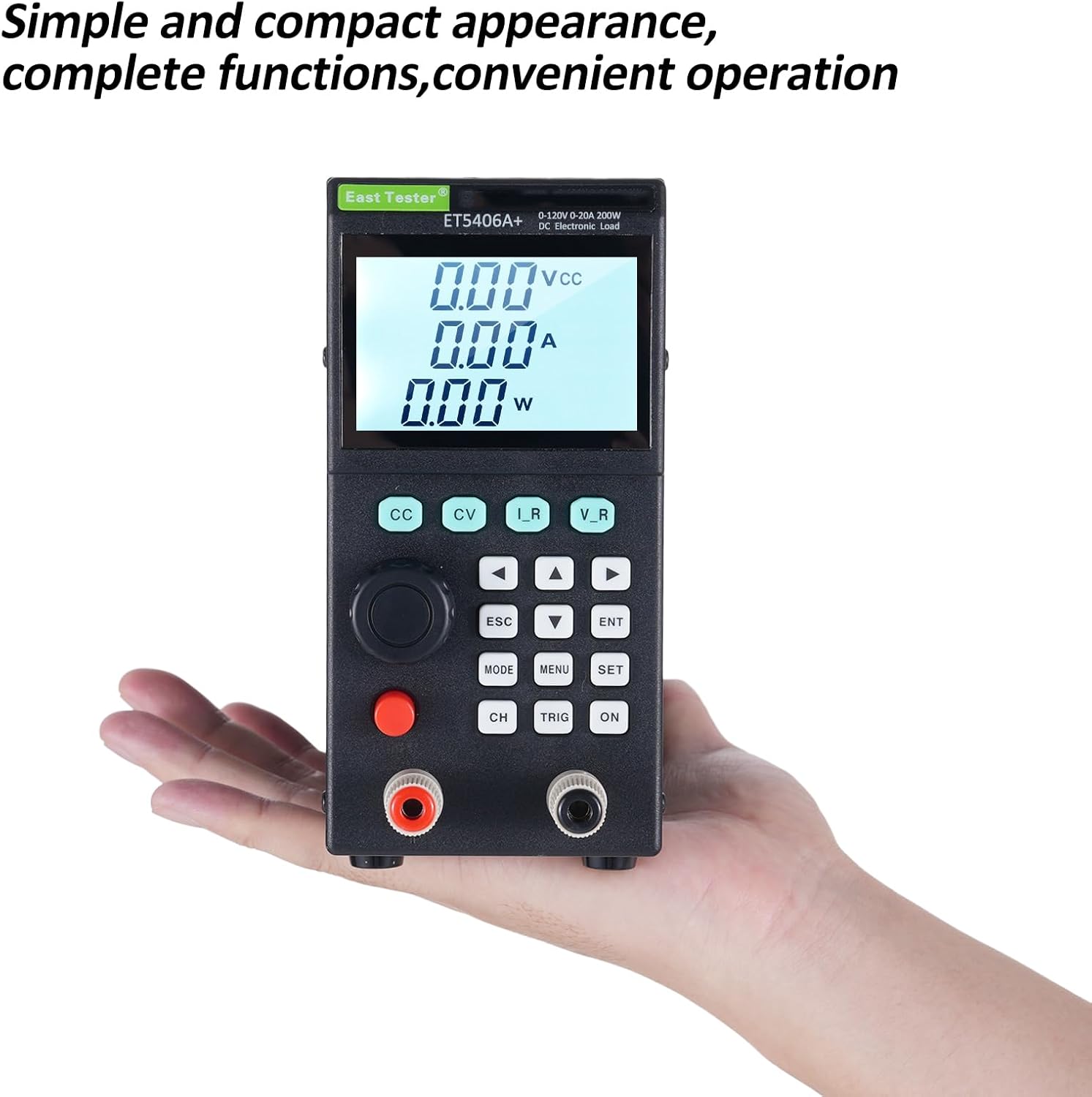

ET5406A+ 200W 0-120V 0-20A Programmable DC Electronic Load Tester 1mV/1mA Mini Battery Tester for CC/CV Test

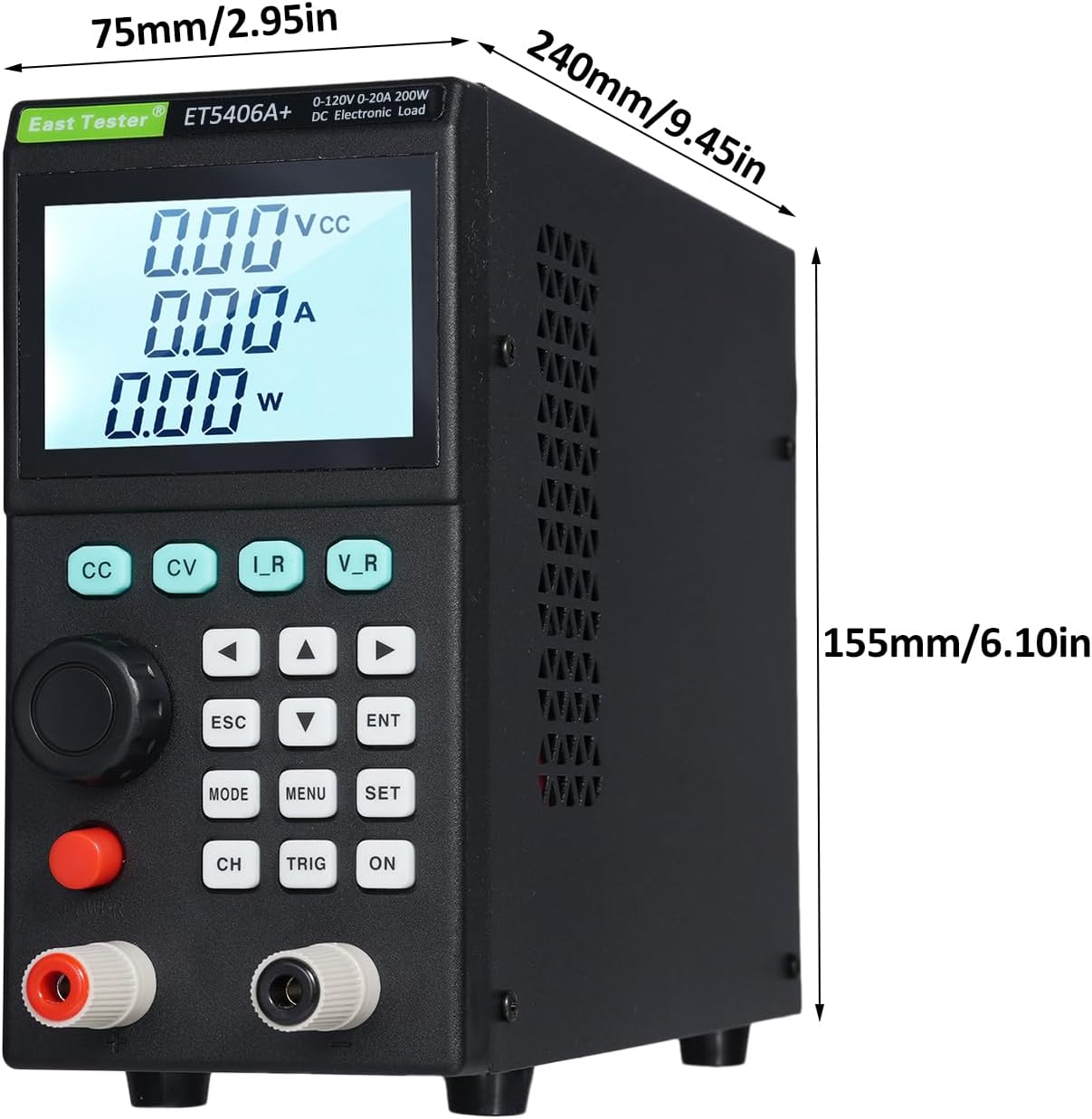

power ply, battery and other production line testing. Specifications: Plug: EU / US / UK (Optional) Model: ET5406A+ Material: Plastic + galvanized sheet Rated Input: Power: 200W Input Vole: 0-120V Input Current: 0-20A CV Mode: : 0.1~19.999V, 0.1~120.00V Resolution: 1mV, 10mV Accuracy: ±(0.05%+0.02%FS) CC Mode: : 0~3.000A, 0~20.00A Resolution: 1mA, 10mA Accuracy: ±(0.05%+0.05%FS) CR Mode: : 0.05Ω~4.50kΩ Resolution: 10mΩ, 1Ω Accuracy: ±(0.1%+0.5%FS) CP Mode: : 0~200W Resolution: 10mW Accuracy: ±(0.1%+0.5%FS) Tran Test: Mode: CC, CV T1 & T2: 0.05s~99.999s Battery Test: Dis Mode: CC, CR Maximum Dis acity: 9999Ah Resolution: 1mA, 10mA, 10mΩ, 1Ω of Measurement: Vole Read-Back Value: : 0~19.999V, 0~120.00V Resolution: 1mV, 10mV Accuracy: ±(0.05%+0.1%FS) Current Read-Back Value: : 0~3.000A, 0~20.00A Resolution: 1mA, 10mA Accuracy: ±(0.05%+0.1%FS) Power Read-Back Value: : 200W Resolution: 10mW Accuracy: ±(0.1%+0.5%FS) Scope of ion: Over Vole ion (OV): ＞21V or ＞125V over vole ion Over Current ion (OC): ＞3.1A or ＞21A over current ion Over Power ion (OP): 210W Over Temperature ion: 85℃ Item Size: 240 * 75 * 155mm / 9.45 * 2.95 * 6.10in Item Weight: 1234g / 2.72lb Package Weight: 1590g / 3.51lb Package Size: 30 * 14 * 20.5cm / 11.81 * 5.51 * 8.07in Package List: 1 * DC Electronic Load 1 * Power Cord 1 * User Manual (English)

• Adopting LCD segment code screen with adjustable back.
• The operation process is simple and convenient, and with visual interface display system, it is easy to get started.
• Key lock function to misoperation.
• It provides CC, CV, CR, CP basic measurement modes.
• It provides professional battery test.
